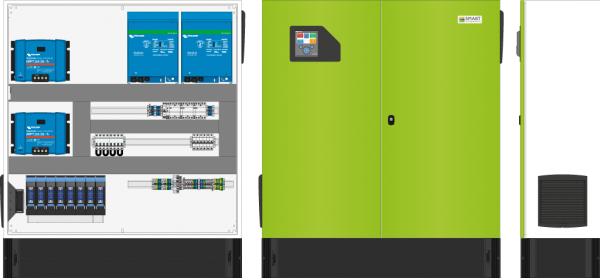

PV Storage SmartEnergy+ DC 6/10 (w/o batteries)

(Deutsch) DC-gekoppelte 1-phasige PV-Speicherlösung

SKU: SE+DC6/10 VE Category:

Off-grid capable PV storage solution with 6kVA / 11.5kVA 230V AC system / transfer power and 10kWp PV power (2 MPPTs); 3-phase power distribution with phase coupling, bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation possible

PV charge controller
Battery voltage
Nominal AC power (25°C)
Max. PV power
Number of MPPTs
Max. PV input voltage
HousingIP54 ground-mounted cabinet from powder coated steel plate incl. 200mm socket kit
Ventilationtemperature controlled up to 150m³/h
Monitoringdisplay / (remote) control / datalogger unit VE ColorControl GX
AC fuse IN/OUT50A circuit breaker type B
DC battery fuseFuse switch disconnector (size 00 – 80V DC) 100A (PV charger) / 150A (inverter)
Featuresgrid & plant protection (VDE AR N4105…); uninterrupted bypass switch with phase coupling
Additional outputschangeover relay K1+K2 (inv); NO contact (CCGX); temp. sensor (inv); ETH (CCGX); 230V AC 1A AUX
Dimensions (wxhxd)
