Off-grid capable PV storage solution with 15kVA / 43kVA 400V AC (3-phase) system / transfer power and 24kWp PV power (4 MPPTs); bypass circuit (uninterruptible), optional mains feedback with integrated grid & plant protection (VDE AR-N4105); display with data logger and remote access via LAN / Internet, pure isolated operation possible

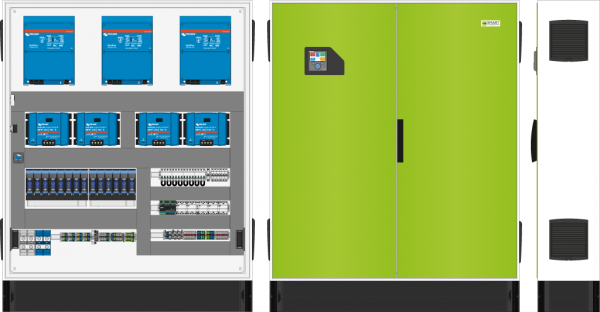

PV Storage SmartEnergy+ DC 15T/20 (w/o batteries)
3-phase DC coupled PV storage solution
| Inverter | 3x VE MultiPlus 48/5000/70-100 |
|---|---|
| PV charge controller | 4x VE SmartSolar MPPT 250/85-TR |
| Battery voltage | 48V |
| Nominal AC power (25°C) | 15.0kVA / 400V (3-ph) |
| Max. PV power | 20.0kWp |
| Number of MPPTs | 4 |
| Max. PV input voltage | 250V |
| Housing | IP54 ground-mounted cabinet from powder coated steel plate incl. 200mm socket kit |
| Ventilation | temperature controlled up to 300m³/h |
| Monitoring | display / (remote) control / datalogger unit VE ColorControl GX |
| AC fuse IN/OUT | 63A circuit breaker type B |
| DC battery fuse | Fuse switch disconnector (size 00 – 80V DC) 100A (PV charger) / 250A (inverter) |
| Features | grid & plant protection (VDE AR N4105…); uninterrupted bypass switch |
| Additional outputs | changeover relay K1+K2 (inv); NO contact (CCGX); temp. sensor (inv); ETH (CCGX); 230V AC 1A AUX |
| Weight | 397kg |
| Dimensions (wxhxd) | 1600mm x2000mm x400mm |
