Plug’n’Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter/charger Victron Energy Quattro 48/8000/110 (8kVA), MPPT charge controller Victron Energy BlueSolar MPPT 250/100-Tr (100A/5,8kWp), PV charger monitor Victron Energy MPPT Control, battery monitor Victron Energy BMV-700 and 2.5m/95mm² battery main cable set

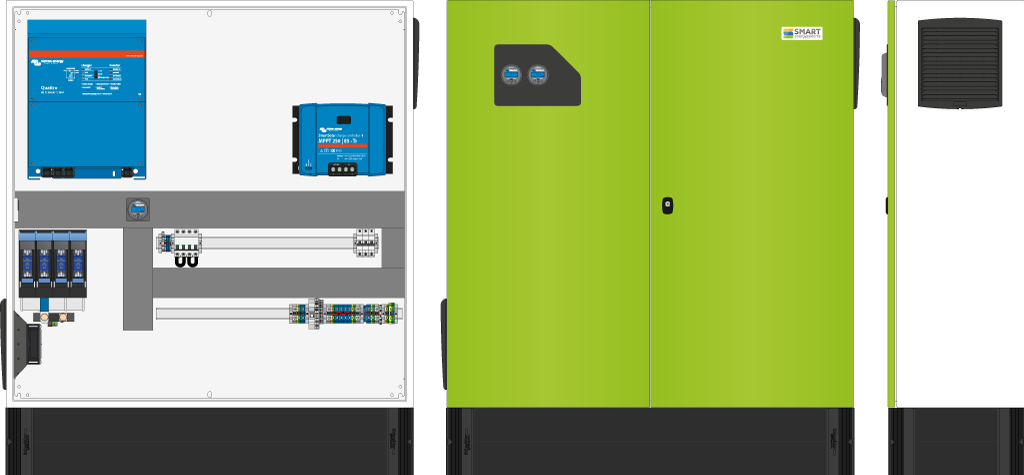

PV Off-Grid System Quattro Power AC8048
Plug'n'Play PV off-grid control cabinet for 230V AC power supply
| Inverter | VE Quattro 48/8000/110-100 |
|---|---|
| PV charge controller | VE SmartSolar MPPT 250/100-Tr |
| Battery voltage | 48V |
| Nominal AC power (25°C) | 8.0kVA / 230V (1-ph) |
| Max. charging current (grid/genset) | 110A |
| Max. PV power | 5.9kWp |
| Number of MPPTs | 1 |
| Max. PV input voltage | 250V |
| Housing | IP54 ground-mounted cabinet from powder coated steel plate incl. 200mm socket kit |
| Ventilation | temperature controlled up to 150m³/h |
| Monitoring | PV-Ladereglermonitor VE MPPT-Control; Batteriemonitor VE BMV-700 (optional: VE ColorControl GX) |
| AC fuse IN/OUT | 50A circuit breaker type B |
| DC battery fuse | Fuse switch disconnector (size 00 – 80V DC) 100A (PV charger) / 250A (inverter) |
| Features | 2x AC input (grid/genset); PV breaker; removable N and PEN bridge |
| Additional outputs | changeover relay K1+K2 (inv); NO contact (BMV); temp. sensor (inv); VE BUS (inv); 230V AC 1A AUX |
| Weight | 161kg |
| Dimensions (wxhxd) | 1200mm x1400mm x400mm |
