Plug’n’Play off-grid cabinet solution (Made in Germany) for 230V AC power supply with inverter Victron Energy Phoenix C 24/1600 (1600VA), MPPT charge controller Victron Energy BlueSolar MPPT 100/50 (50A/1400Wp), PV charger monitor Victron Energy MPPT Control, battery monitor Victron Energy BMV-700 and 2.5m/25mm² battery main cable set

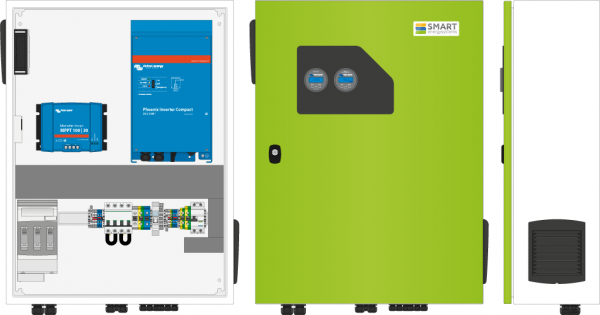

PV Off-Grid System Phoenix Power AC1624
Plug'n'Play PV off-grid control cabinet for 230V AC power supply
| Inverter | VE Phoenix Compact 24/1600 |
|---|---|
| PV charge controller | VE BlueSolar MPPT 100/50 |
| Battery voltage | 24V |
| Nominal AC power (25°C) | 1.6kVA / 230V (1-ph) |
| Max. PV power | 1.4kWp |
| Number of MPPTs | 1 |
| Max. PV input voltage | 100V |
| Housing | IP54 wall-mounted cabinet from powder coated steel plate incl. wall mounting brackets |
| Ventilation | temperature controlled up to 60m³/h |
| Monitoring | PV-Ladereglermonitor VE MPPT-Control; Batteriemonitor VE BMV-700 (optional: VE ColorControl GX) |
| AC fuse IN/OUT | 16A circuit breaker type B |
| DC battery fuse | Fuse switch disconnector (size 00 – 250V DC) 63A (PV charger) / 125A (inverter) |
| Features | PV breaker; RCD (type A 30mA) for AC OUT |
| Additional outputs | NO contact (BMV); temp. sensor; VE BUS (inv); 230V AC (1A) AUX |
| Weight | 44kg |
| Dimensions (wxhxd) | 600mm x800mm x250mm |
